Product Details
＋

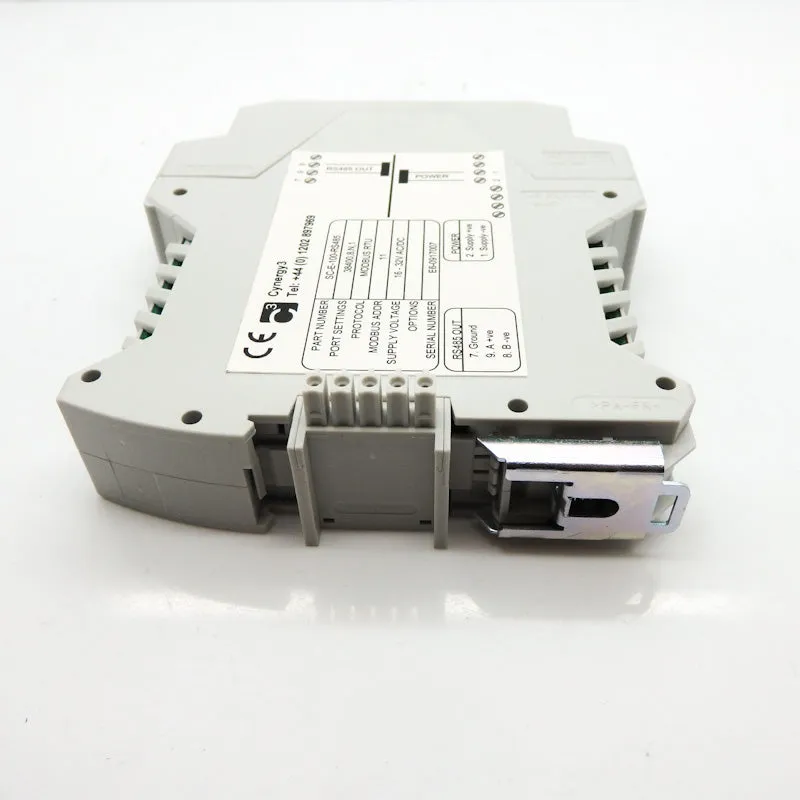

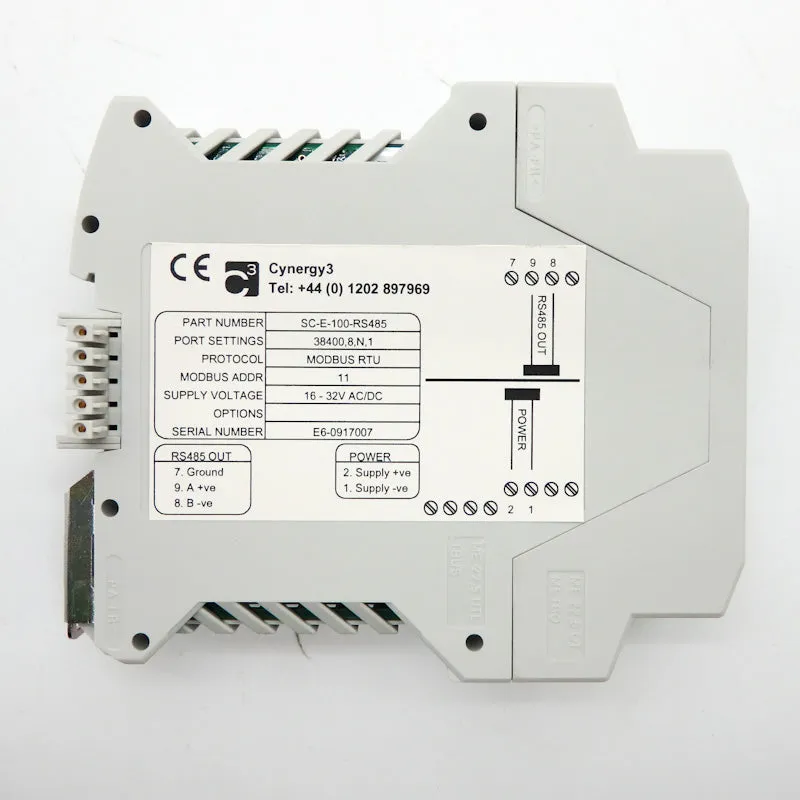

This is a Sensata Cynergy3 Analogue I/O to Comms Gateway SC-E-100-RS485. It comes as pictured and does not include any additional parts or accessories.

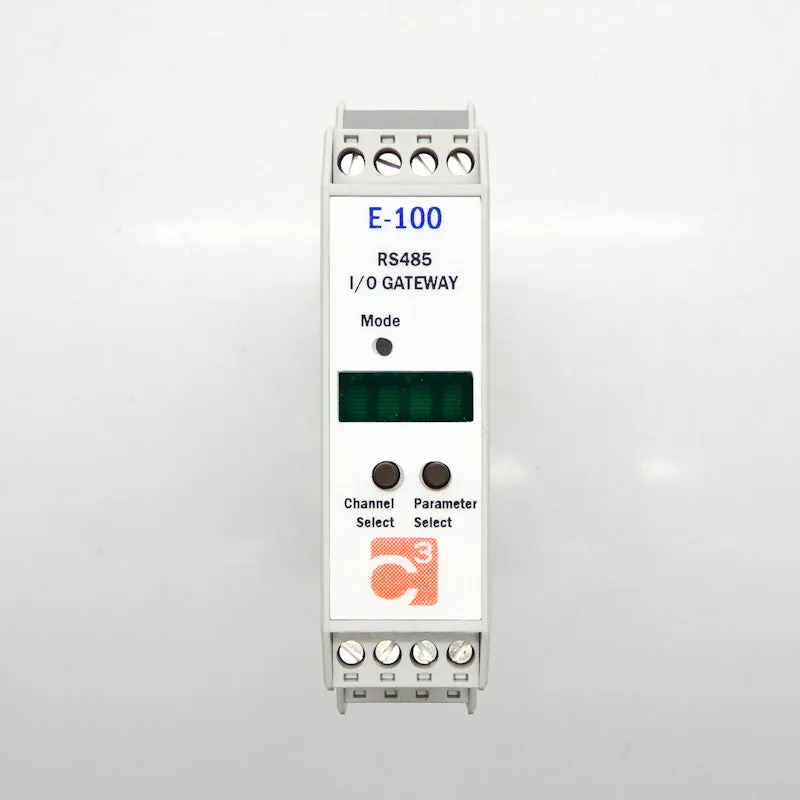

The SC-E-100 Ethernet Gateway module provides a straight forward method of interfacing analogue and digital process parameters to an Ethernet or RS232/485 network. The SC-E-100 allows the user to view the status of the individual inputs via the front panel display. The SC-E-100 unit can have one or two analogue inputs but the system can be expanded through the use of the optional SC-ISOSLICE slice I/O modules. These modules connect automatically via the DIN rail mounted bus connector, allowing the easy addition and removal of extra I/O. A built-in display allows local monitoring of the individual inputs and outputs, a useful commissioning and operations tool. Additionally the Ethernet version has a built-in web page which can be used to display live data using any standard web browser. Using the SC-E-100 is a simple way to implement an Ethernet measurement and control system or it can be used to add additional inputs and outputs to an existing Ethernet or RS232/485 installation.
Features:
- Universal Configurable Analogue Input
- IsoSlice I/O system for additional I/O
- Built-in Web-page for Live Monitoring of Data
- MODBUS TCP or RTU Protocol
- RS485 Comms Port
