Product Specifications

• Operating Temperature: -328-392℉ (-200-200℃)
• Thermocouple Type: RTD
• Probe Material: F46
• Accuracy: ±1.5°F or °C
• Junction Type: Ungrounded

• Tip Diameter: 0.157" (4mm)

• Tip Length: 1.181" (30mm)
• Wire Length: 78.74" (2000mm)
• Connector Type: Cold pressed terminals
• Application: Air, Liquid & Solid Object Temperature measurement

Product Description

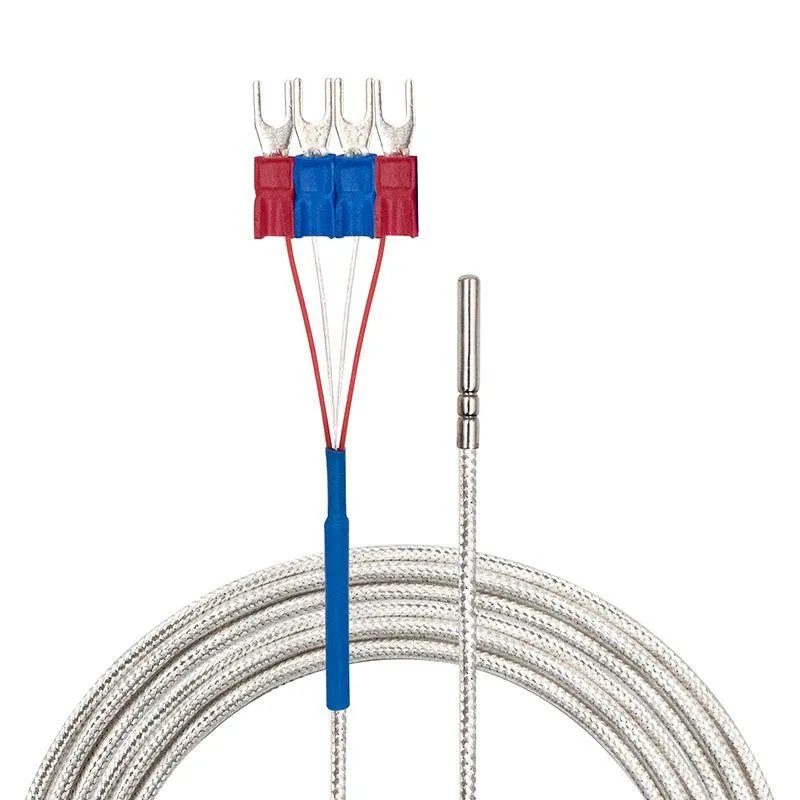

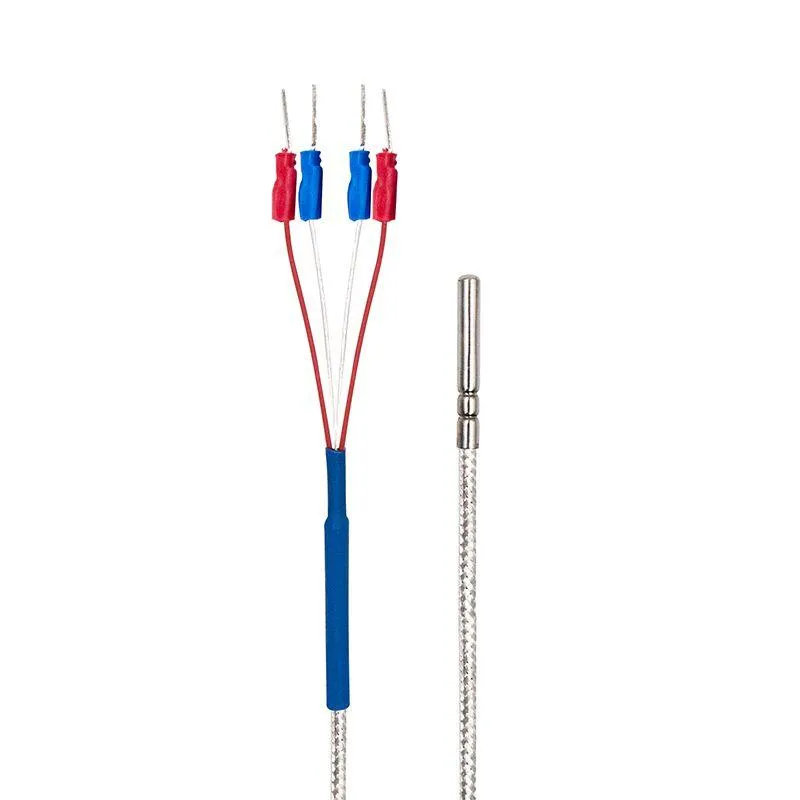

RTDs - or Resistance Temperature Detectors - are temperature sensors that contain a resistor that changes resistance value as its temperature changes. They have been used for many years to measure temperature in a laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability.

4 wire connection is the most accurate measurement. The instrument measures the lead resistance of all four lead wires removing these values for its reading

COMPATIBLE BRANDS

• Fluke
• Flir
• Extech
• Omega
• And other brands thermometers that use a K-type probe

WORKS WITH

•  - 2-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
•  - 2-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
•  - 4-Channels Thermocouple Thermometer
