Product Description

• Quickly add a Gigabit Ethernet port through USB™ 3.0

• USB™ 3.0 plug-and-play and backwards compatible with USB™ 2.0/1.1

• Transfer all your files almost instantly over a true Gigabit network

• IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible

• USB™ bus-powered

• Compatible with Windows® and macOS®

• Activity and Link LED indicators

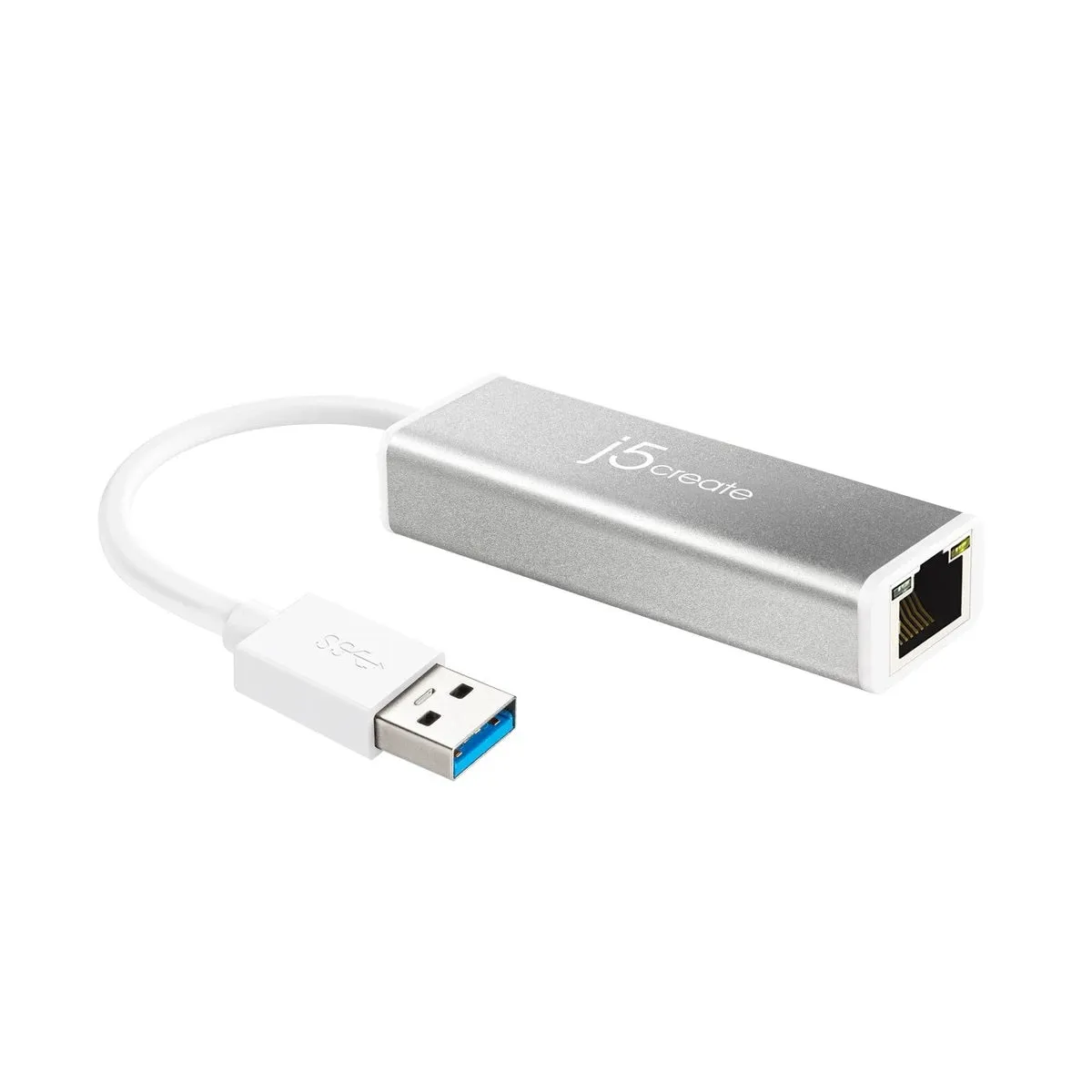

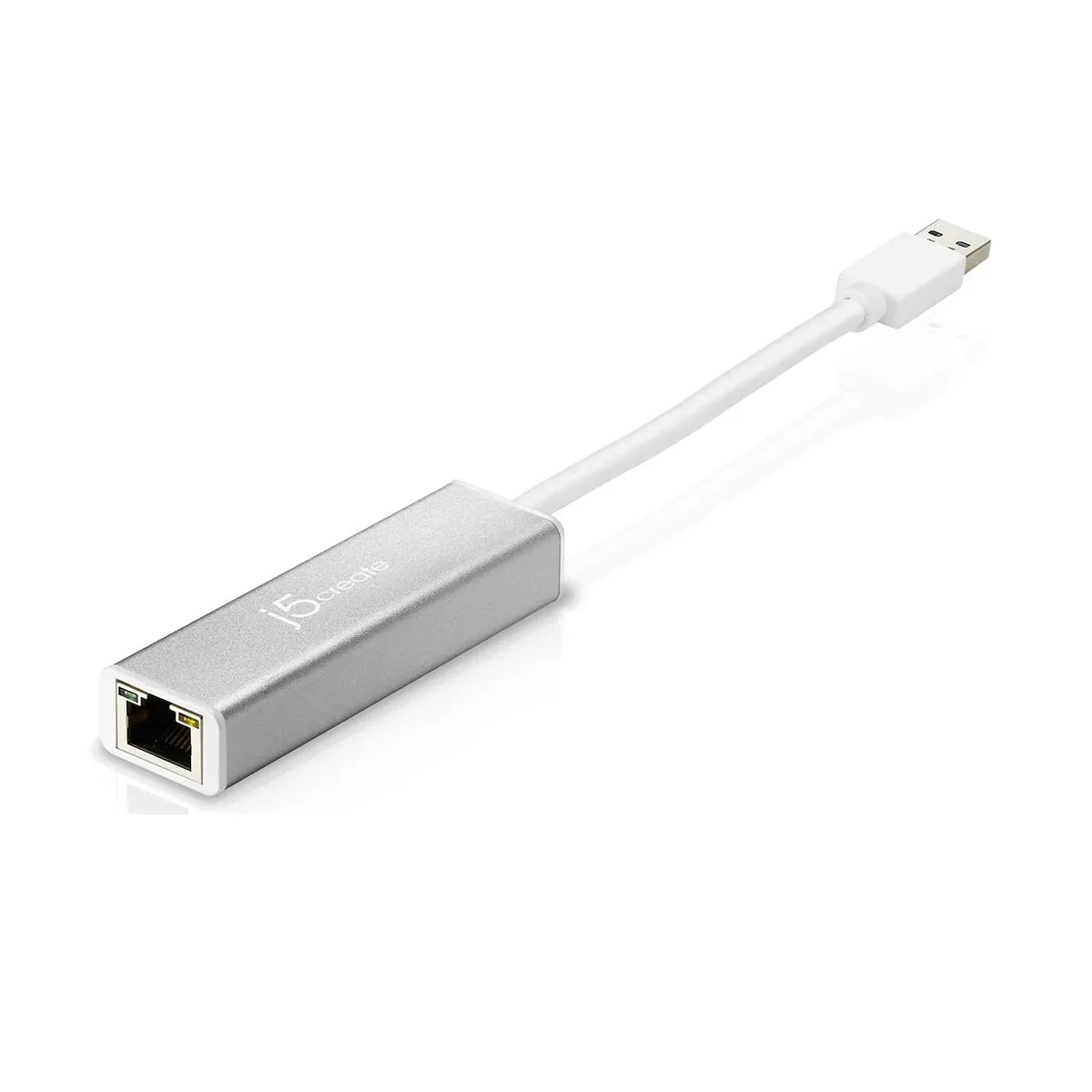

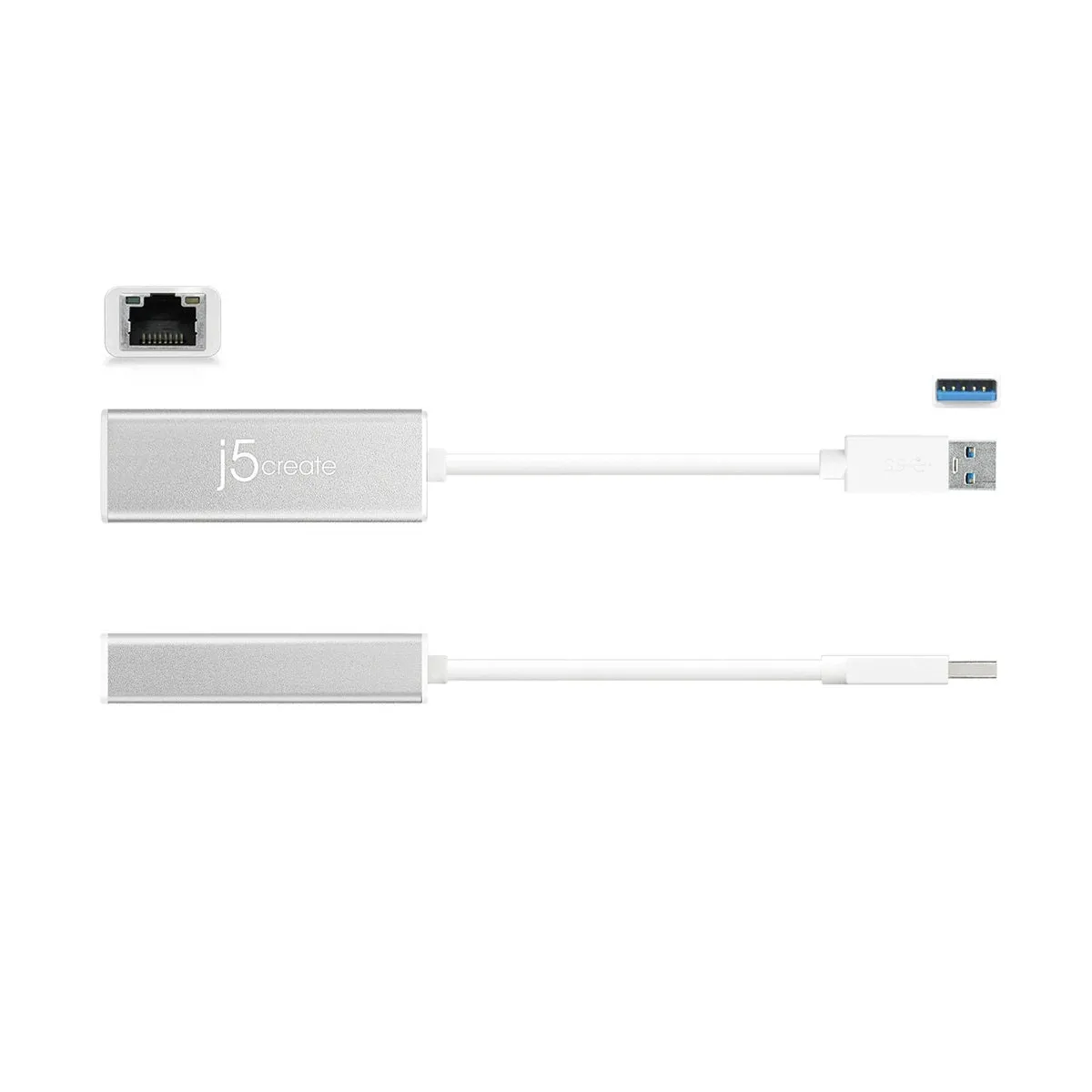

The JUE130 USB™ 3.0 Gigabit Ethernet Adapter is a simple, one-piece external adapter that plugs into the USB™ port on your Ultrabook™ or MacBook®. It is the ultimate solution if you do not have an Ethernet port or if you just want to increase your connection speed.

The elegantly designed JUE130 uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance and allows you to add networking capabilities to a computer without them through a Wireless LAN connection.

Interface

USB™ Port

USB™ 3.0 A-Type Male connector supporting USB™ 3.0 & 2.0 & 1.1 specifications

Ethernet Port

RJ-45 Female connector

Transfer Rate

Maximum Data

1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)

Power

Power Mode

Bus-Powered

Supports

IEEE

IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes

Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™, or Microsoft® wake-up frame

Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering

Supports Jumbo Frame

Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Physical Specifications

LED Indicators

Network Link / Activity

Housing Material

Aluminum

Dimensions

Main Body

83 (W) x 57 (H) x 16 (D) mm

USB™ Cable Length

5.71 in (0.145 m)

Weight

0.09 lbs (0.04 kg)

System Requirements

Windows® 10 / 8.1 / 8 / 7 / Windows Vista™ / XP

macOS® X 10.6 or later

Linux® Kernel 3.x / 2.6.x

Nintendo Switch compatible

Available USB™ port (USB™ 3.0 is recommended)

Driver not required for Linux® 3.x / Chrome OS™ 3.8

Driver will automatically install on Windows® 7 / 8.1 / 10 (Requires internet access)

NOTE: A manual installation may still be required on Windows® 7 / 8.1 / 10

Package Contents

1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter

1 x Driver CD

1 x Quick Installation Guide
