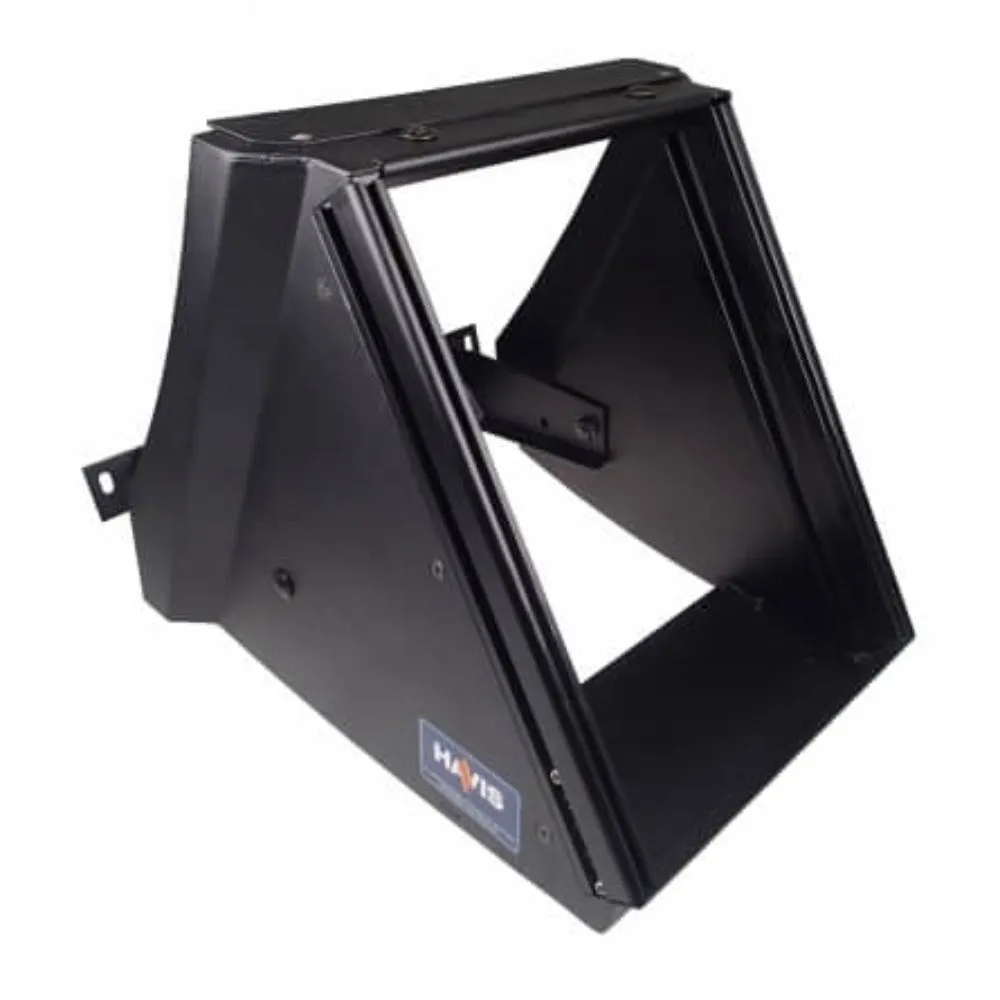

• 11" under dash vehicle-specific console for 2017-2022 Ford F-250, 350, 450 XL and XLT pickup, F-450 and 550 cab chassis, 2020-2022 F-600 Chassis Cab, 2015-2020 Ford F-150 XL and XLT pickup, 2015-2020 F-150 SSV, 2018-2020 F-150 Responder and 2018-2021 Ford Expedition SSV
• Designed for trucks with 40/20/40 split bench seats or 40/mini console/40 seats
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• Includes cutout and extension cable for relocation of one (1) OEM USB into the side of the console
• Includes additional trim panel for XL dash without CD player
• See side view drawing min/max mounting depth allowed for control heads and/or options
• No additional vehicle mounting kit required
• Works with C-DMM-3006
• Works with dash monitor mount C-DMM-2006
• Does not work with OEM manual transmission floor shifter
• Does not work on higher trim levels with OEM full length center console
• Does not work with 4 x 4 floor shifter ( works with dash mounted 4 x 4 selector switch)
• Weight: 8 lbs

Side View Depth Measurements:
