Product Details
＋

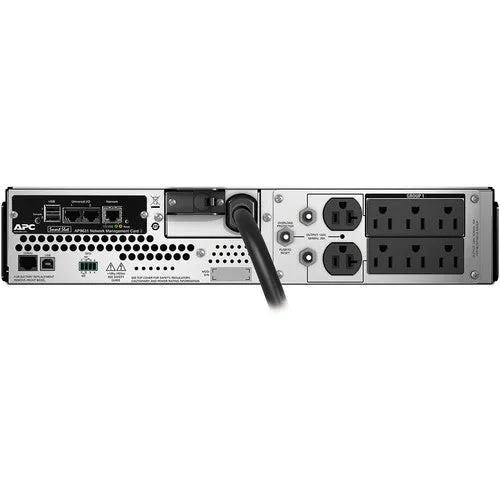

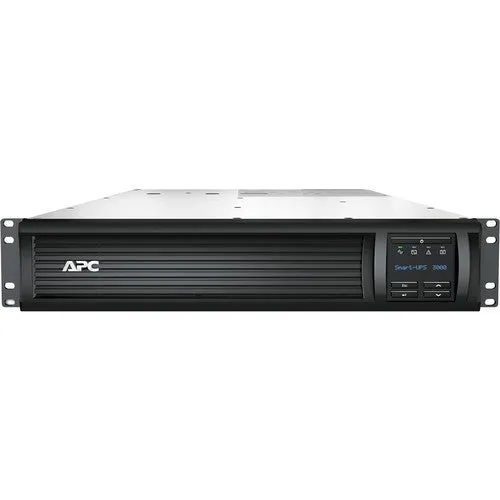

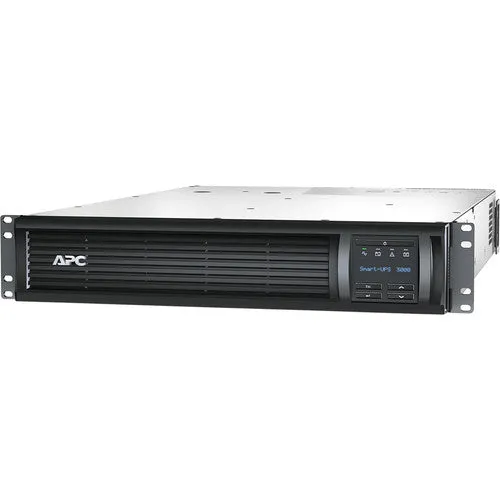

The Smart-UPS Battery Backup with Network Card from APC features an output of 2880 VA / 2700W, an input range of 75-154 VAC @ 50-60 Hz, two NEMA 5-20R battery backup outputs, six NEMA 5-15R battery backup outputs, a surge energy rating of 459 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included is a pre-installed APC AP9631 Network Management Card and a rack mounting rail kit. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty.
General Features
- Adaptability
- Adjustable Voltage-Transfer Points
- Helps maximize the useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
- Safety
- Safety-Agency Approved
- Helps ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Availability
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test helps ensure early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-Compensated Battery Charging
- Helps prolong battery life by regulating the charge voltage according to battery temperature.
- Power Conditioning
- Helps protects connected loads from surges, spikes, lightning, and other power disturbances.
- Manageability
- Network Manageable
- Provides remote power management of the UPS over the network.
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- LED Status Indicators
- Understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Serviceability
- Resettable Circuit Breakers
- Helps enable a quick recovery from overload events.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Hot-Swappable Batteries
- Helps ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Battery Failure Notification
- Helps provides early-warning fault analysis on batteries, enabling preventive maintenance.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thereby reducing the Mean Time to Repair (MTTR).
Product Distribution
Countries
Colombia, Costa Rica, Dominican Republic, Ecuador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, El Salvador, and United States
UPC: 731304332770
